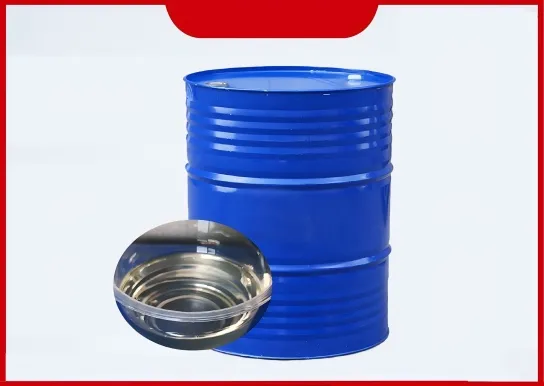

This is an epoxy resin product under Kukdo Chemical's KD series, model KD-211H, with the core word High-Purity High-Adhesion Liquid Bisphenol A Epoxy Resin. It is a liquid epoxy resin developed for high-end protection and precision bonding, presenting as pale yellow transparent viscous liquid. It has high purity and low impurity content
High clarity - Crystal clear after curing, strong yellowing resistance, outstanding decorative texture
Suitable for deep casting - Can be applied in 2-4 inch thick coats at one time, meeting large gap filling needs
Excellent curing performance - Low exotherm and low shrinkage, good dimensional stability after forming
Combined adhesion and insulation - Strong adhesion to various substrates, reliable electrical insulation performance
Friendly operability - Moderate pot life, good fluidity, easy to penetrate tiny parts
Craft casting - Molding of high-end DIY craft products such as wooden river tables and resin ornaments
Electronic encapsulation - Insulation sealing and protection of electronic modules, transformers and coils
Mold manufacturing - Casting molding and repair of small precision molds
Component packaging - Waterproof and moisture-proof packaging protection of circuit boards and electronic junction boxes
Decorative coatings - Transparent protective and texture-enhancing coatings for high-end furniture and accessories
| Type | Two-component liquid epoxy resin |
| Chemical Category | Bisphenol A epoxy resin |
| Viscosity (25℃, mPa·s) | 3000-3500 (Resin component); 300-350 (Hardener component) |
| Density (25℃, g/ml) | 1.10±0.05 |
| Mixing Ratio (Weight Ratio) | Resin:Hardener = 2:1 |
| Pot Life (25℃, min) | 50-60 |
| Curing Time (25℃, h) | 6-24 (Preliminary curing); 48 (Full curing) |
| Hardness after Curing (Shore-D) | 82-85 |
| High and Low Temperature Resistance Range (℃) | -45~180 |
