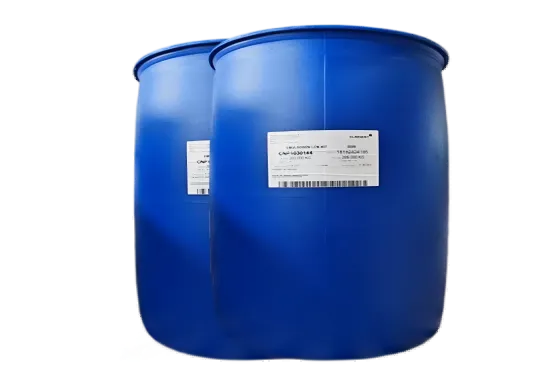

Clariant Calsogen ARL 100 ND Cationic Asphalt Emulsifier

Clariant Calsogen™ ARL 100 ND is a cationic asphalt emulsifier based on tall oil derivatives, designed for rapid-setting (RS) and slow-setting (SS) emulsions. Its quaternary ammonium structure enables 60-70% bitumen loading with 30% lower dosage than conventional emulsifiers. The solvent-free liquid provides immediate ionic activation at 50-80°C, forming stable emulsions with penetration grades from 50-200 dmm. Compliant with ASTM D977 and EN 13808 standards, it's suitable for both hot-mix and cold-applied asphalt systems

Features Of Clariant Calsogen ARL 100 ND Cationic Asphalt Emulsifier

  1. Bitumen Optimization – Reduces emulsifier usage by 0.3-0.5% while maintaining storage stability .

  2. Setting Control – Adjustable breaking time from 15-120 minutes via pH modulation .

  3. Aggregate Adhesion – Enhances bonding to acidic/alkaline aggregates (≥95% coating) .

  4. Low-Temperature Performance – Effective in emulsification processes down to 5°C .

  5. Eco-Design – Biodegradable (OECD 301F) with<1% VOC content .

Typical Applications Of Clariant Calsogen ARL 100 ND Cationic Asphalt Emulsifier

  1. Microsurfacing – Stabilizes polymer-modified emulsions for rut filling .

  2. Tack Coats – Improves adhesion between pavement layers .

  3. Cold Recycling – Enables RAP content up to 100% in recycled mixes .

  4. Roofing Membranes – Enhances fiber mat saturation in waterproofing systems .

Specificaions Of Clariant Calsogen ARL 100 ND Cationic Asphalt Emulsifier

Appearance
-
Transparent brown liquid
Active Substance (ca.)
%
50
Chemical Description
-
Iso C12 alkyl benzene sulfonic acid calcium salt in aromatic solvent with Genapol X 060
Density [g/cm³; 20°C]
g/cm³
Approx. 1.05
pH Value [%]
-
Approx. 7
Water Content [%]
%
< 0.5
Flash Point [°C]
°C
> 100
Iodine Color Number [10% Methanol]
-
Max. 8
