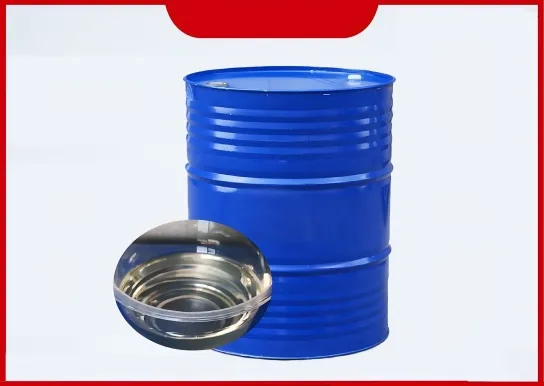

The brand is KUKDO, the series is KD Series, the model is KD-2103. It is a high-performance liquid epoxy resin developed for deep casting and electronic encapsulation fields, presenting as transparent viscous liquid. With low exotherm and low shrinkage during curing, it combines excellent adhesion and insulation
High clarity - Crystal clear after curing, strong yellowing resistance, outstanding decorative texture
Suitable for deep casting - Can be applied in 2-4 inch thick coats at one time, meeting large gap filling needs
Excellent curing performance - Low exotherm and low shrinkage, good dimensional stability after forming
Combined adhesion and insulation - Strong adhesion to various substrates, reliable electrical insulation performance
Friendly operability - Moderate pot life, good fluidity, easy to penetrate tiny parts
Craft casting - Molding of high-end DIY craft products such as wooden river tables and resin ornaments
Electronic encapsulation - Insulation sealing and protection of electronic modules, transformers and coils
Mold manufacturing - Casting molding and repair of small precision molds
Component packaging - Waterproof and moisture-proof packaging protection of circuit boards and electronic junction boxes
Decorative coatings - Transparent protective and texture-enhancing coatings for high-end furniture and accessories
| Type | Two-component liquid epoxy resin |
| Chemical Category | Bisphenol A epoxy resin |
| Viscosity (25℃, mPa·s) | 3000-3500 (Resin component); 300-350 (Hardener component) |
| Density (25℃, g/ml) | 1.10±0.05 |
| Mixing Ratio (Weight Ratio) | Resin:Hardener = 2:1 |
| Pot Life (25℃, min) | 50-60 |
| Curing Time (25℃, h) | 6-24 (Preliminary curing); 48 (Full curing) |
| Hardness after Curing (Shore-D) | 82-85 |
| High and Low Temperature Resistance Range (℃) | -45~180 |
